STERLINK U510/lite+
U510/lite+
UNIVERSAL LINE
Low Temperature Plasma Sterilizer
for Small Medical Devices in Short Time
for Small Medical Devices in Short Time
On-Site Sterilization Reimagined: Plasmapp's Tabletop Plasma
Technology Sets a New Standard. Compact yet powerful, the U-510
boasts a tabletop footprint that transcends limitations, offering
unparalleled versatility for clinics of any size. Its innovative design
ensures practicality and ease of integration into diverse clinical
settings, providing a seamless solution for your veterinary practice.
※STERLINK U510 is for 110V and STELRINK lite is for 220V.
Technology Sets a New Standard. Compact yet powerful, the U-510
boasts a tabletop footprint that transcends limitations, offering
unparalleled versatility for clinics of any size. Its innovative design
ensures practicality and ease of integration into diverse clinical
settings, providing a seamless solution for your veterinary practice.
※STERLINK U510 is for 110V and STELRINK lite is for 220V.
Sterilization Performance
STERLINK U510 / STERLINK lite+ verifies sterilization performance
through the following lumen tests
Single-channel lumen claims for STERLINK U510 / STERLINK lite+
through the following lumen tests
Single-channel lumen claims for STERLINK U510 / STERLINK lite+
- Ø0.7 x 500mm Stainless steel
Low Temperature
Sterilization
Easy
Operation
Fast
Sterilization
Compact
Design
Lumen
Sterilization
Economical
Sterilization
Low Temperature Plasma Sterilizer
for Small Medical Instruments
for Small Medical Instruments
Specification
| STERLINK U510 / STERLINK lite+ | |||
|---|---|---|---|

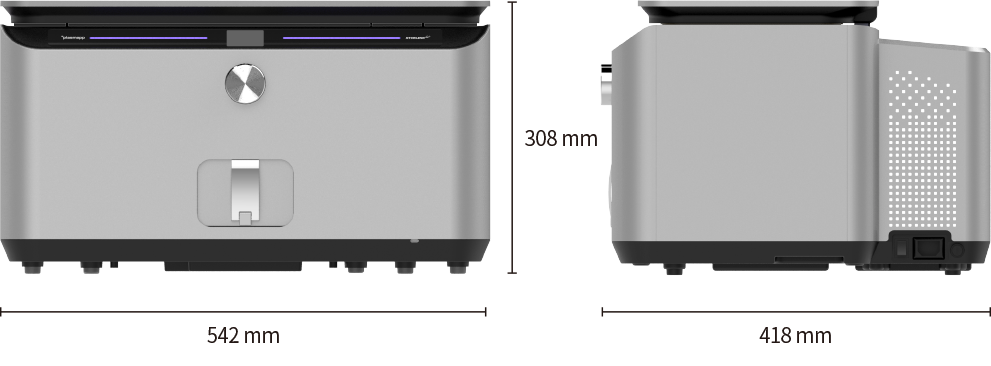

| Size(W x D x H) | 542 x 418 x 308 mm | Vacuum Pump | Pump built-in type |

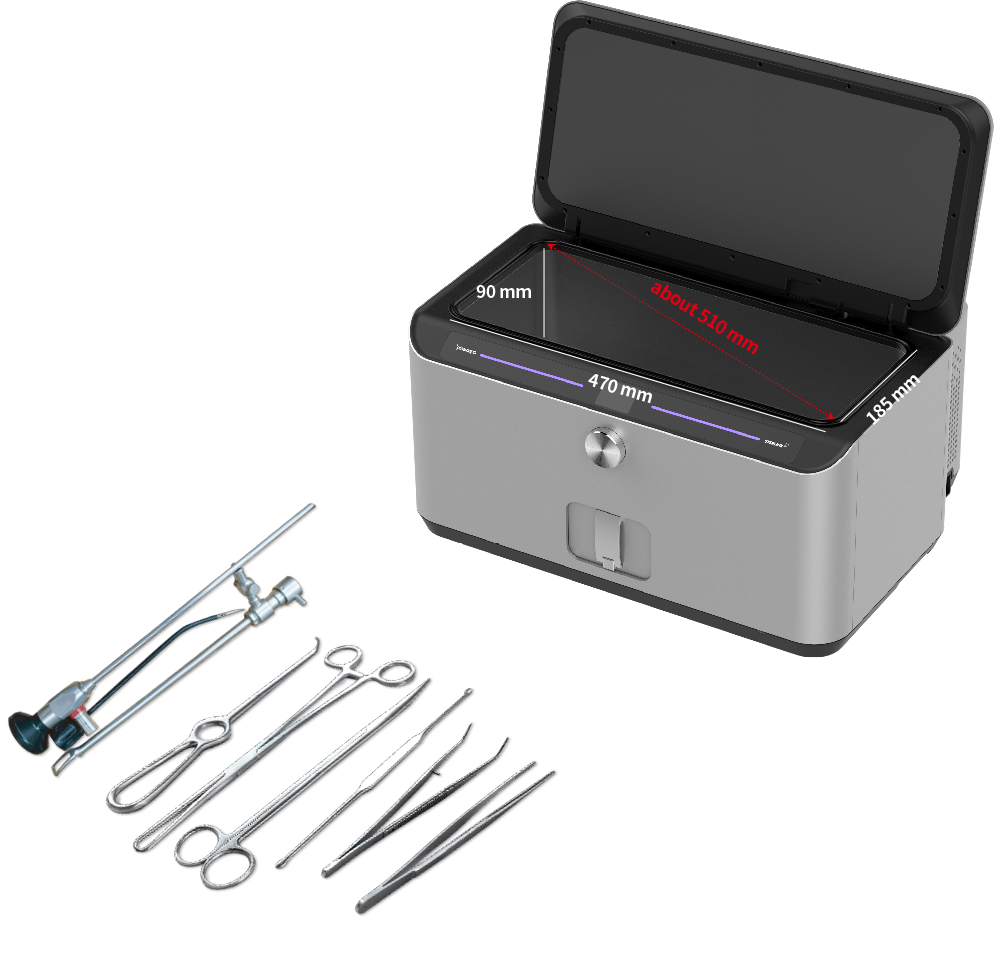

| Chamber(W x D x H) | 470 x 185 x 90 mm(8ℓ) | Weight | 40kg |
| Chamber Diagonal Length | 510 mm | Sterilant Cassette | 20 Cycles (Standard Mode) 20 Cycles (Advanced Mode) |

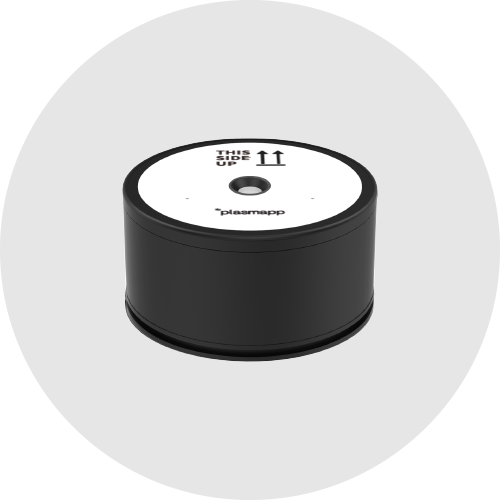

STERMATE Sterilant
Introducing the Sterilant used with the STERLINK U510 / STERLINK lite
- STERLOAD U30 / STERLOAD lite
- Standard Mode / Advanced Mode
Standard Mode / Advanced Mode
- Medical instruments in the 6 liter chamber are sterilized in a short time.
- Sterilant is contained inside the can which prevents any hazard from chemical exposure.
- Two sterilization cycle modes can be used to quickly sterilize medical instruments.
- Use Tyvek® for easy storage after using chamber mode.
Cycle Time
| Mode | Cycle Time | Capacity | Sterilant |
|---|---|---|---|
| Standard Mode | STERLOAD U30 : 17 min | 8ℓ | H2O258% - 59.5% (0.9ml/cycle) |
| Advanced Mode | STERLOAD U30 : 24 min | 8ℓ | H2O258% - 59.5% (0.9ml/cycle) |
