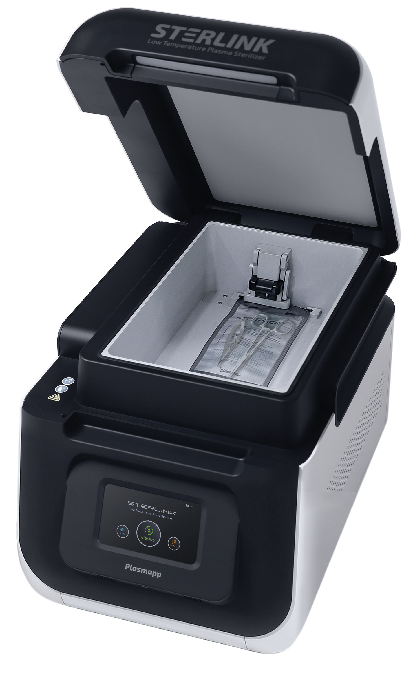

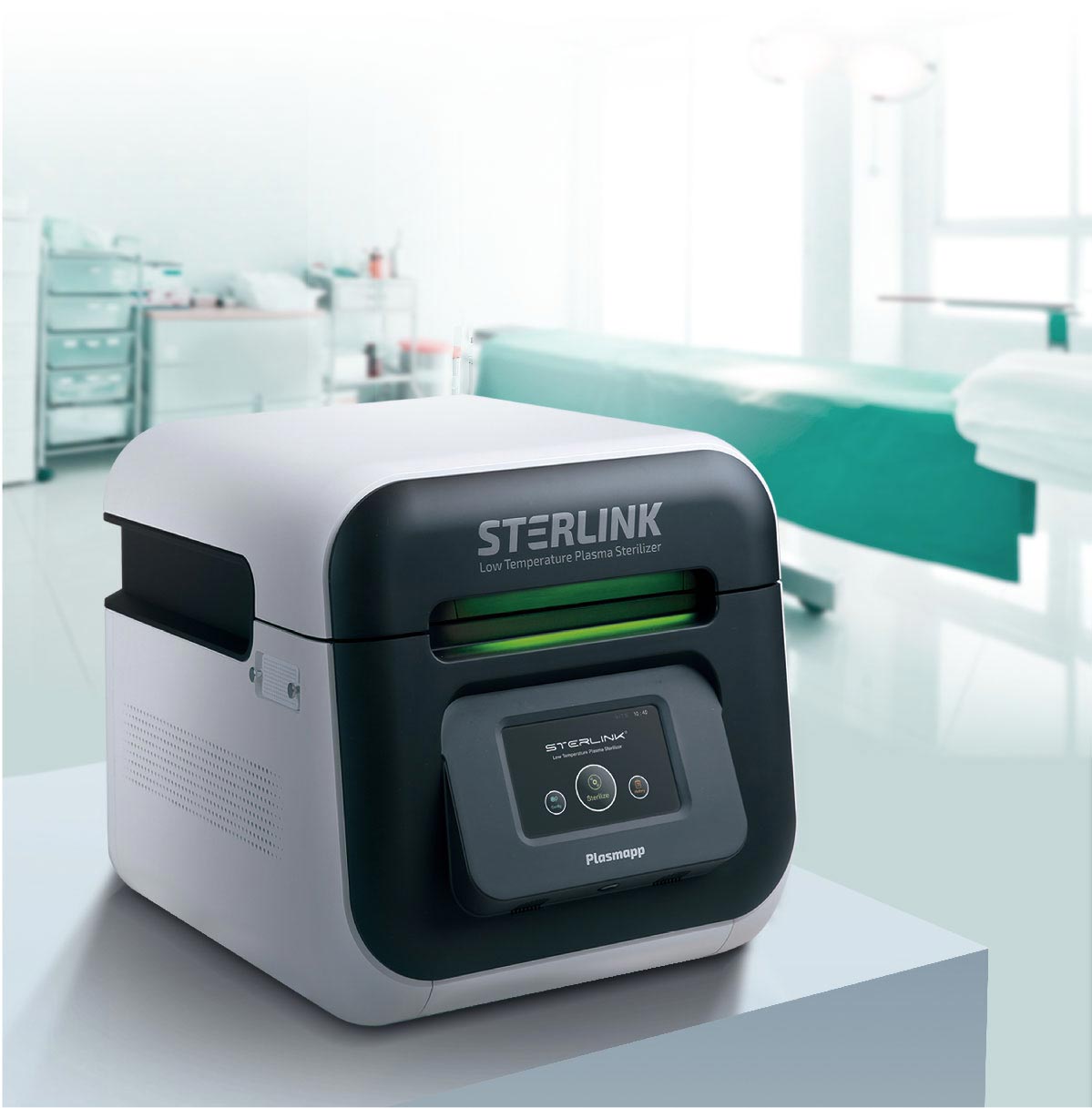

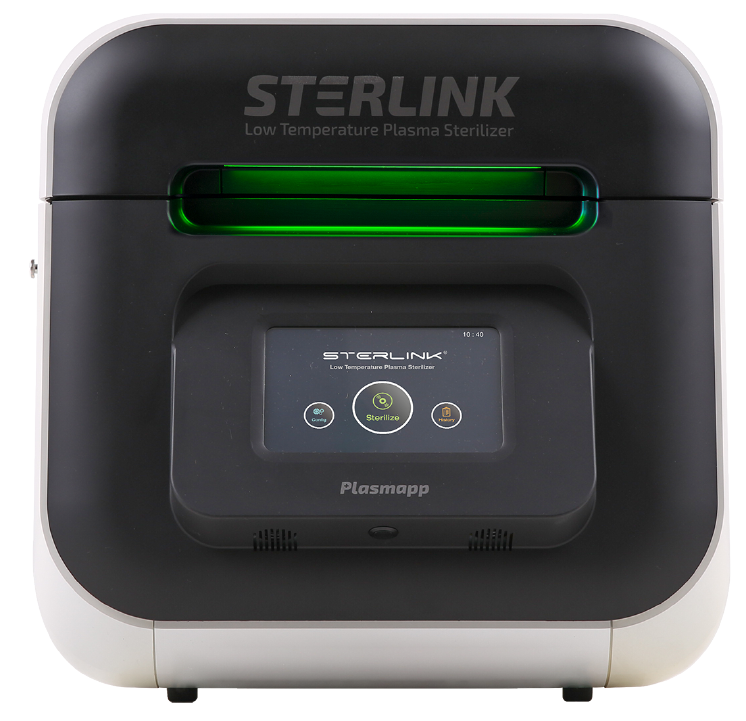

STERLINK FPS-15s Plus
FPS-15s Plus
Low Temperature Plasma Sterilizer for
Wide Range of Medical Devices
Wide Range of Medical Devices
The world’s first direct injection pouch-type patented sterilization technology has been applied.
SAL of 10-6 is validated to ensure sterilization stability of medical devices.
(SAL: Sterility Assurance Level, 99.9999%)
SAL of 10-6 is validated to ensure sterilization stability of medical devices.
(SAL: Sterility Assurance Level, 99.9999%)
Sterilization Performance
STERLINK verifies sterilization performance through the following lumen tests
Single-channel lumen claims for STERLINK
Single-channel lumen claims for STERLINK
- Ø0.7 x 500mm Stainless steel
- Ø2.0 x 1,500mm Stainless steel
- Ø1.0 x 2,000mm PTFE
STERLINK - inside diameter 1mm and a length up to 2,000mm
Competitor A
length up to 500mm
length up to 500mm
Competitor B
length up to 1,000mm
length up to 1,000mm
Plasmapp
STERLINK
STERLINK
Low Temperature
Sterilization
Easy
Operation
Fast
Sterilization

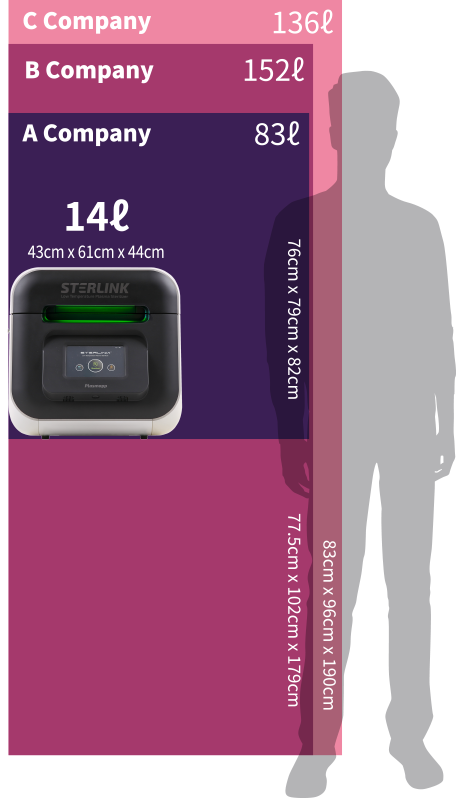

Compact
Design
Lumen
Sterilization

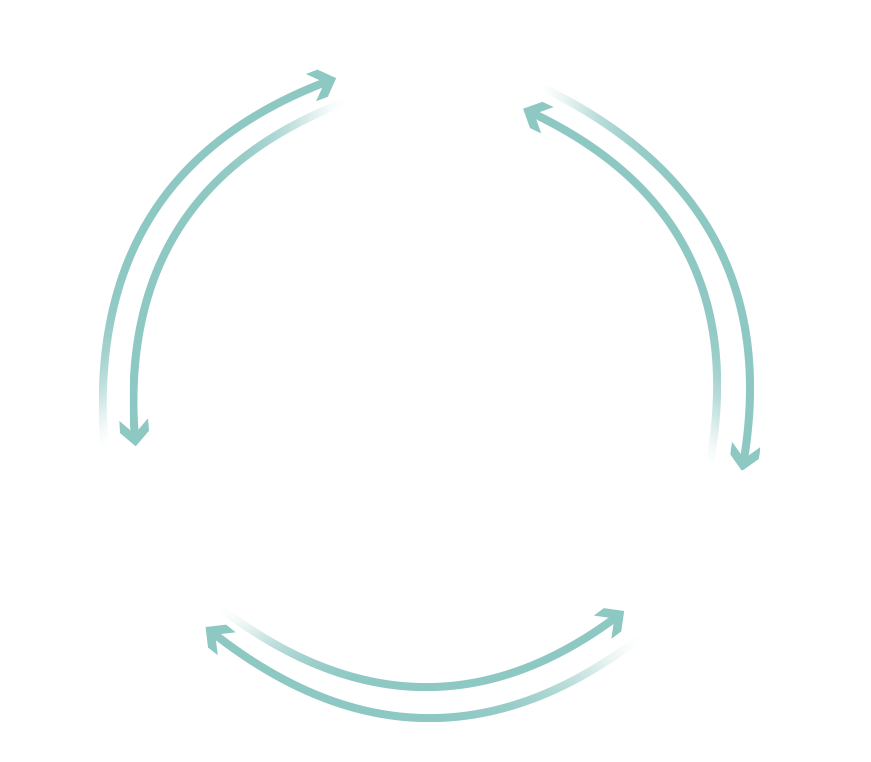

Real-Time
Monitoring
The world's first small plasma sterilizer
approved by the US FDA
approved by the US FDA
510(K) clearance for STERLINK sterilizer system of Plasmapp
(K212200 / K212193 / K212198)
(K212200 / K212193 / K212198)
Specification
| STERLINK FPS-15s Plus | |||
|---|---|---|---|

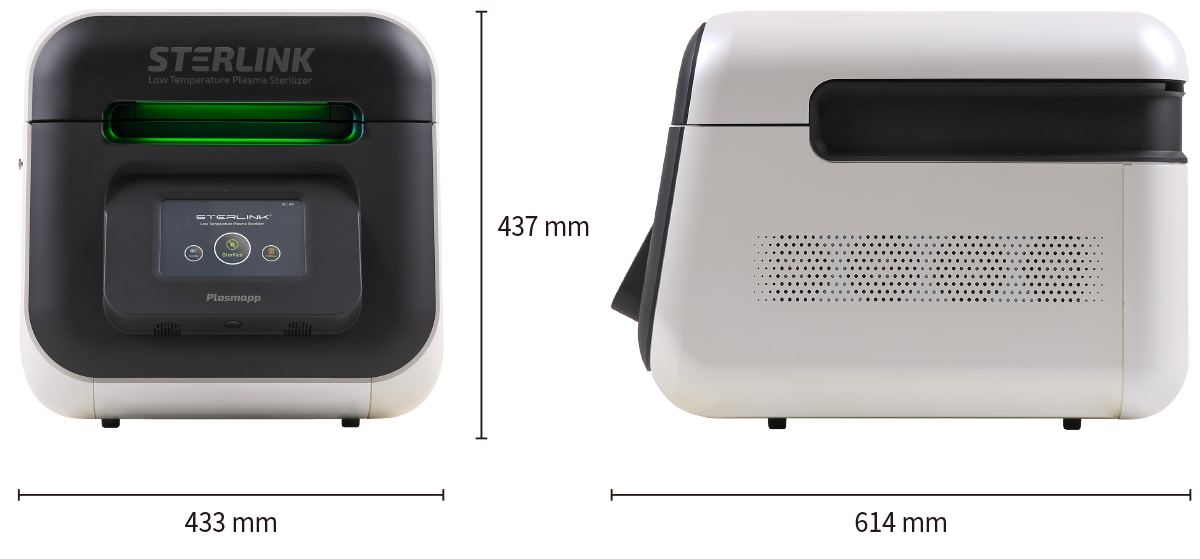

| Size(W x D x H) | 433 x 614 x 437 mm | Vacuum Pump | Pump built-in type |

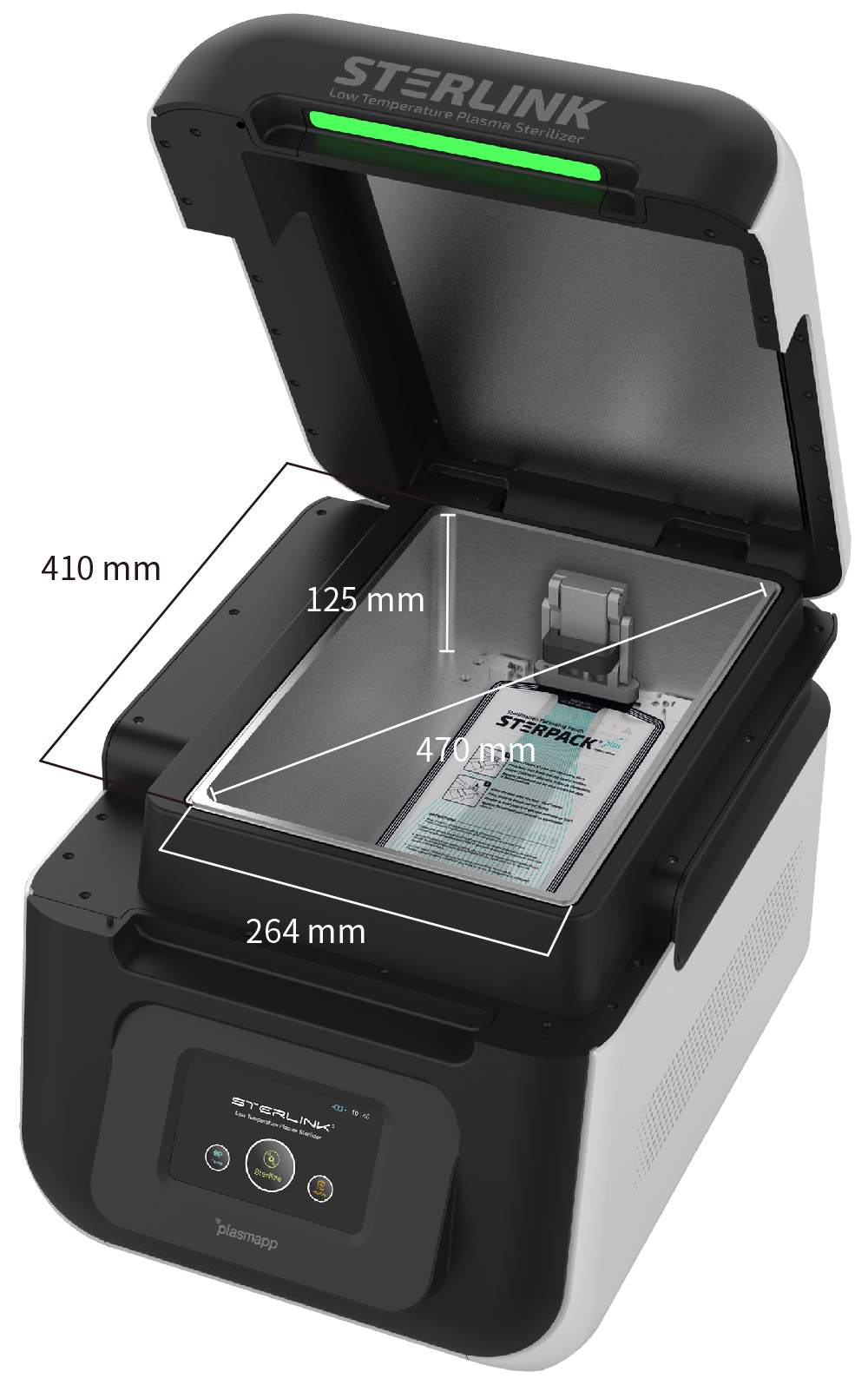

| Chamber(W x D x H) | 264 x 410 x125 mm(14ℓ) | Weight | 67kg |
| Chamber Diagonal Length | 47cm | Sterilant Cassette | 1 Cycle |
STERMATE Sterilant
Introducing the Sterilant used with the STERLINK FPS-15s Plus

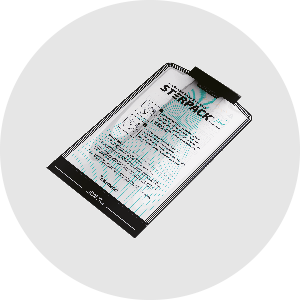

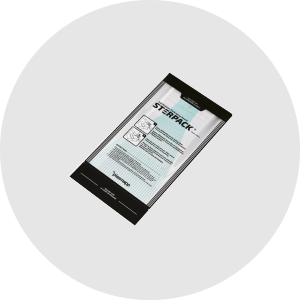

- STERPACK
- Pouch Mode
- 1 Cycle Use Only

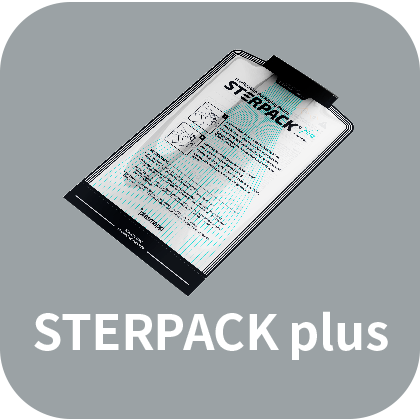

- STERPACK plus
- Pouch Plus Mode
- 1 Cycle Use Only

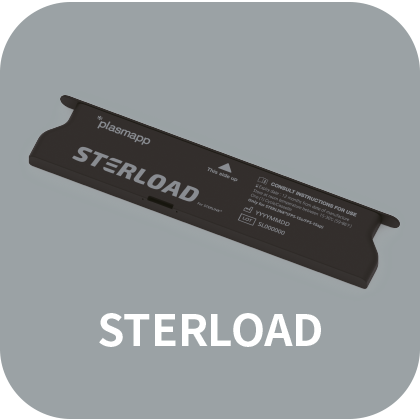

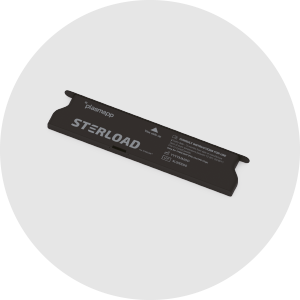

- STERLOAD
- Chamber Mode
- 1 Cycle Use Only

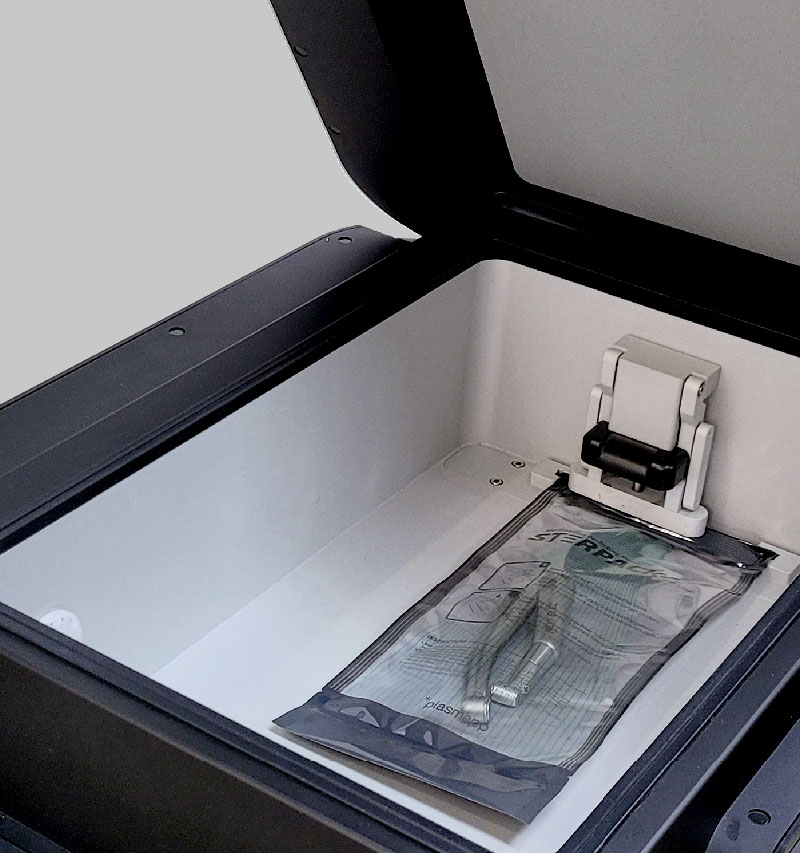

Pouch / Pouch Plus Mode
- World first pouch-type fast sterilization with the patented direct sterilant injection technology from Plasmapp.
- Vacuum condition visualizes the sterile condition and prevents possible infection.
- Vacuum sealed pouch can be stored up to 6 months in sealed sterile condition.
- STERPACK can easily be loaded into the chamber by an ergonomically designed.
- STERPACK does not leave sterile residue, so the chamber can be kept clean.

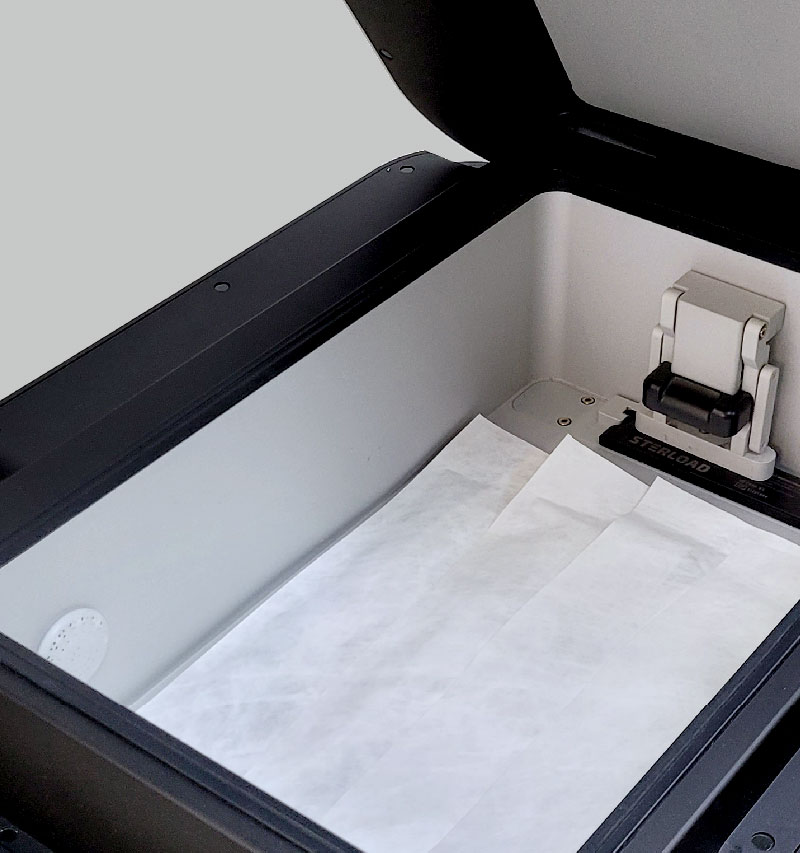

Chamber Mode
- Medical instruments in the 14 liter chamber are sterilized in a short time.
- Sterilant is contained inside the cartridge which prevents any hazard from chemical exposure.

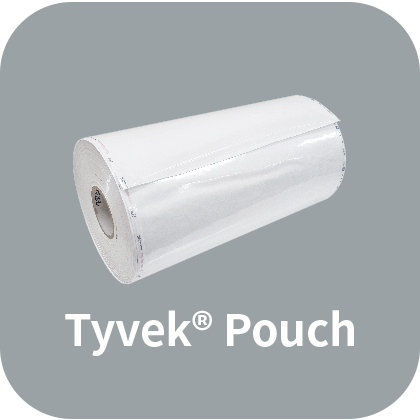

- Use Tyvek® for easy storage after using chamber mode.
Cycle Time
| Mode | Cycle Time | Capacity | Sterilant |
|---|---|---|---|
| Pouch Mode | STERPACK : 7 min | 1ℓ | H2O258% - 59.5% (0.1ml/cell) |
| Pouch Plus Mode | STERPACK Plus : 14 min | 4.5ℓ | H2O258% - 59.5% (0.3ml/cell) |
| Chamber Mode | STERLOAD : 36 min | 14ℓ | H2O258% - 59.5% (0.9ml/cell) |
* STERPACK, STERPACK Plus and STERLOAD are global certified sterilant.
Innovative plasma sterilization technology verified
through patents and research papers
through patents and research papers
Forced convective heating for low-temperature sterilization
Publication expected in 2021 (AIP) - https://doi.org/10.1063/5.0048688
Review of Scientific Instruments 92, 064902 (2021) conducted by Dr. Youbong Lim, Dr. Wonho Choe, Dr. Seung Hun Lee, Dr. Jun Young Kim and Dr. Hyun Jeong Jeon
Publication expected in 2021 (AIP) - https://doi.org/10.1063/5.0048688
Review of Scientific Instruments 92, 064902 (2021) conducted by Dr. Youbong Lim, Dr. Wonho Choe, Dr. Seung Hun Lee, Dr. Jun Young Kim and Dr. Hyun Jeong Jeon
