Low Temperature Plasma Sterilizer for Medical Devices in Short Time
SAL of 10-6 is validated to ensure sterilization stability of medical devices.
(SAL: Sterility Assurance Level, 99.9999%)
(SAL: Sterility Assurance Level, 99.9999%)
Sterilization Performance
STERLINK verifies sterilization performance through the following lumen tests
Single-channel lumen claims for STERLINK
Single-channel lumen claims for STERLINK
- Ø0.7 x 500mm Stainless steel
- Ø2.0 x 1,500mm Stainless steel
- Ø1.0 x 2,000mm PTFE
STERLINK - inside diameter 1mm and a length up to 2,000mm
Competitor A
length up to 500mm
length up to 500mm
Competitor B
length up to 1,000mm
length up to 1,000mm
Plasmapp
STERLINK
STERLINK
Moisture Removal
System
Low Temperature
Sterilization
Easy
Operation
Optimized
Capacity
Lumen
Sterilization
Economical
Sterilization
Low Temperature Plasma Sterilizer for Large Medical Instruments
Specification
| STERLINK lab | |||
|---|---|---|---|

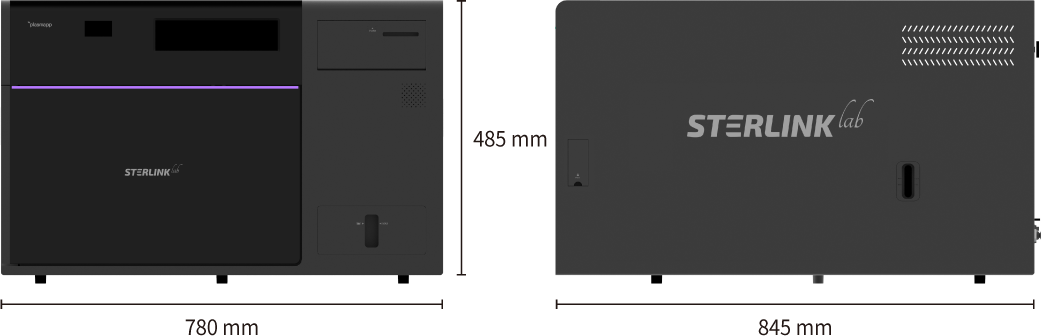

| Size (W x D x H) | 780 x 845 x 485 mm | Vacuum Pump | Pump built-in type |

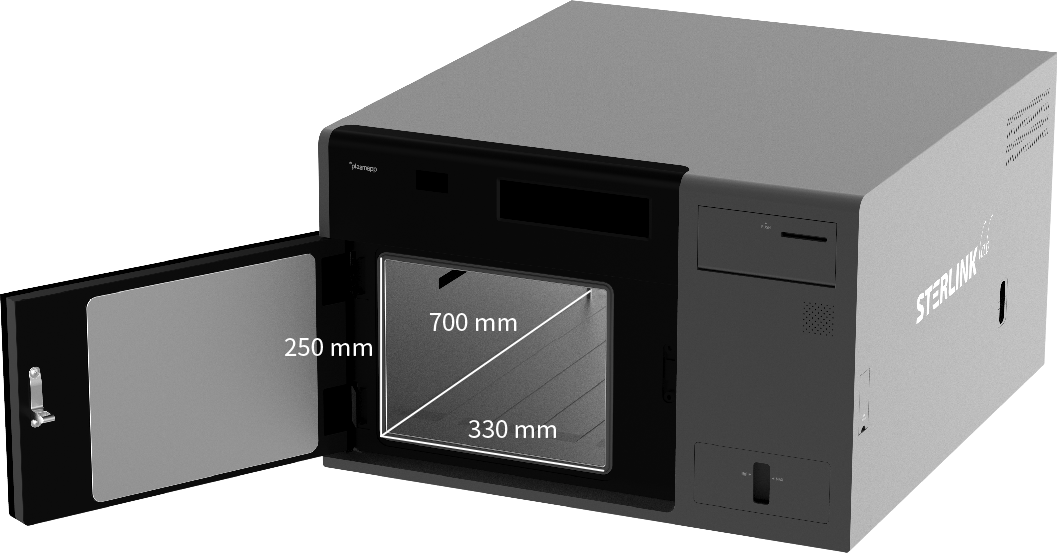

| Chamber (W x D x H) | 330 x 700 x 250 mm(58ℓ) | Weight | 126 kg |
| Chamber Diagonal Length | 77 cm | Sterilant Cassette | 1 Cycle |

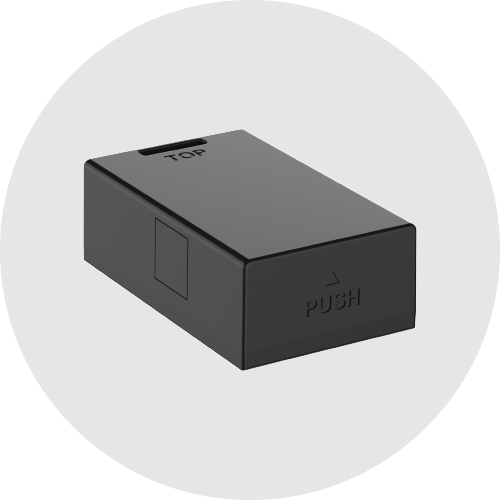

STERMATE Sterilant
Introducing the Sterilant used with the STERLINK lab
- STERLOAD lab

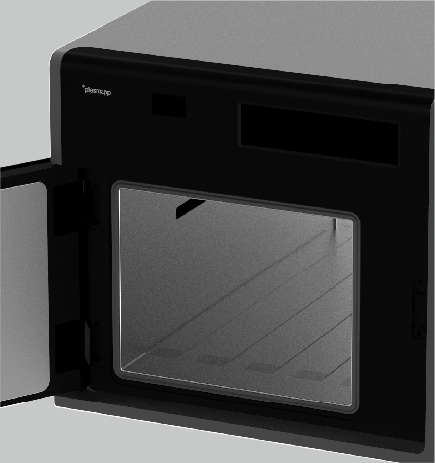

- Sterilization Mode
Sterilization Mode
- Medical devices in the 58 liter chamber can be sterilized.
- Sterilant is contained inside the cartridge which prevents any hazard from chemical exposure.
- Use Tyvek® for easy storage after using sterilization mode.
Cycle Time
| Mode | Cycle Time | Capacity | Sterilant |
|---|---|---|---|
| Sterilization Mode | STERLOAD lab : 39 min | 58 ℓ | H2O258% - 59.5% (5ml/cell) |
| Drying Mode | 12 min | 58 ℓ | - |
Innovative plasma sterilization technology verified
through patents and research papers
through patents and research papers
Forced convective heating for low-temperature sterilization
Publication expected in 2021 (AIP) - https://doi.org/10.1063/5.0048688
Review of Scientific Instruments 92, 064902 (2021) conducted by Dr. Youbong Lim, Dr. Wonho Choe, Dr. Seung Hun Lee, Dr. Jun Young Kim and Dr. Hyun Jeong Jeon
Publication expected in 2021 (AIP) - https://doi.org/10.1063/5.0048688
Review of Scientific Instruments 92, 064902 (2021) conducted by Dr. Youbong Lim, Dr. Wonho Choe, Dr. Seung Hun Lee, Dr. Jun Young Kim and Dr. Hyun Jeong Jeon
